    High Efficiency Compressor to Achieve a High COP

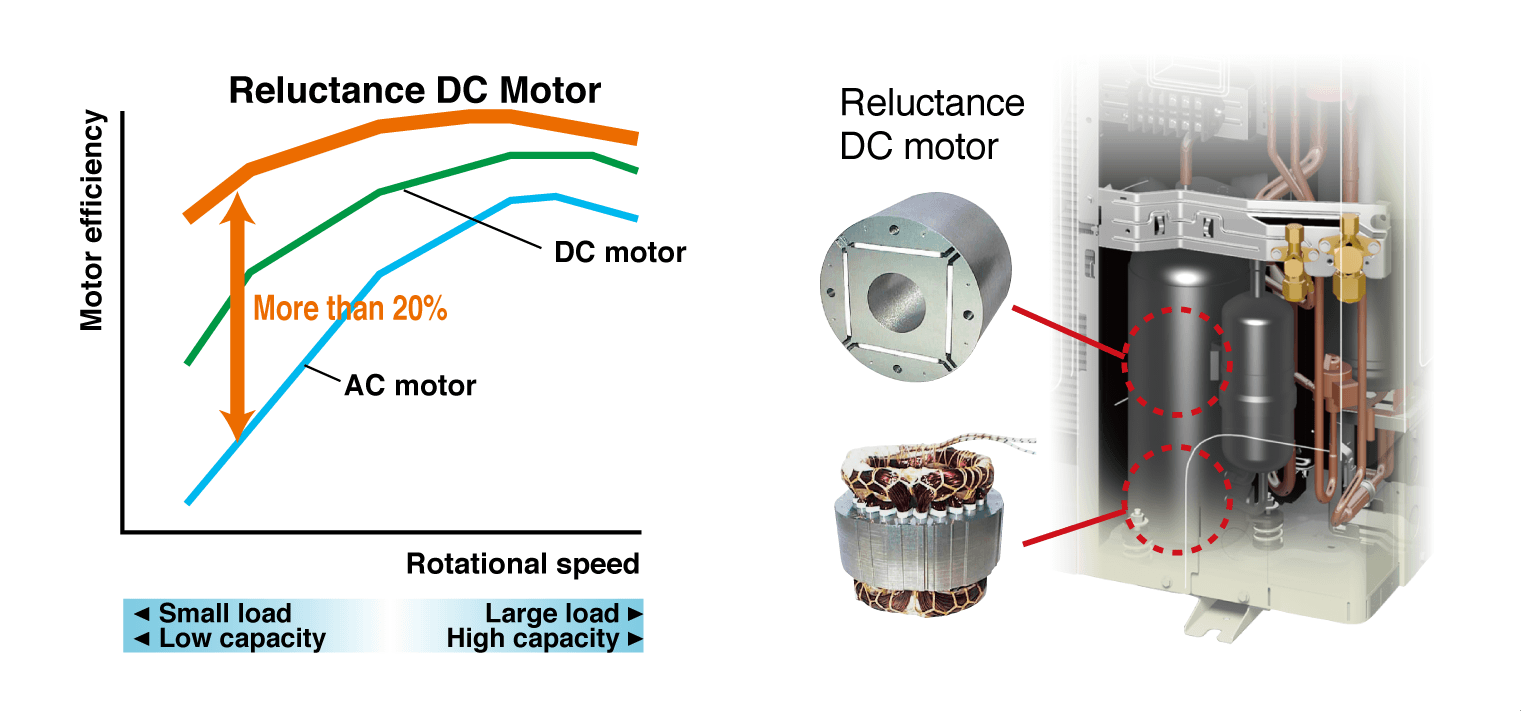

    Daikin DC inverter models are equipped with a reluctance DC motor for the compressor.
    The reluctance DC motor uses 2 different types of torque, neodymium magnet*1 and reluctance torque*2.
    This motor saves energy because it can generate more power using less electric power than an AC or conventional DC motor.

Note: Data are based on studies conducted under controlled conditions at a Daikin laboratory.

  • *1.A neodymium magnet is approximately 10 times stronger than a standard ferrite magnet.
  • *2.The torque created by the change in power between the iron and magnet parts.

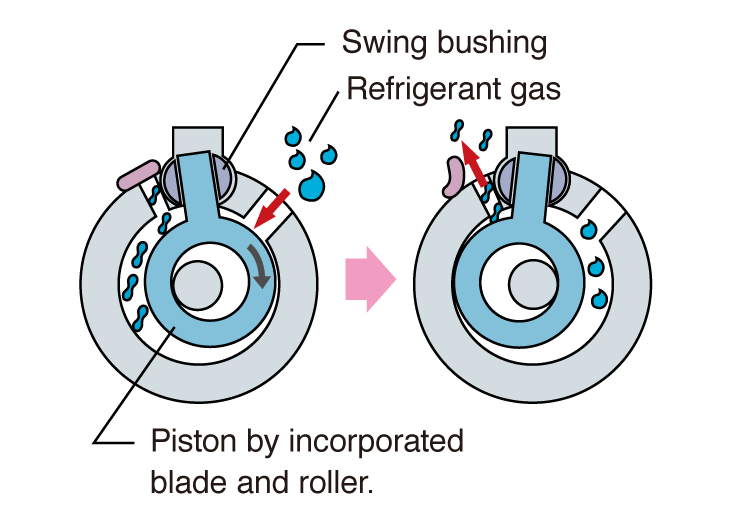

Swing Compressor Model

Friction and refrigerant leakage are minimized for greater energy savings.

Scroll Compressor Model

Sucked gas is compressed in the scroll section before reaching the heated motor so that non-expanded gas is compressed, resulting in high efficiency compression.

  • *Features and specifications differ according to model.
