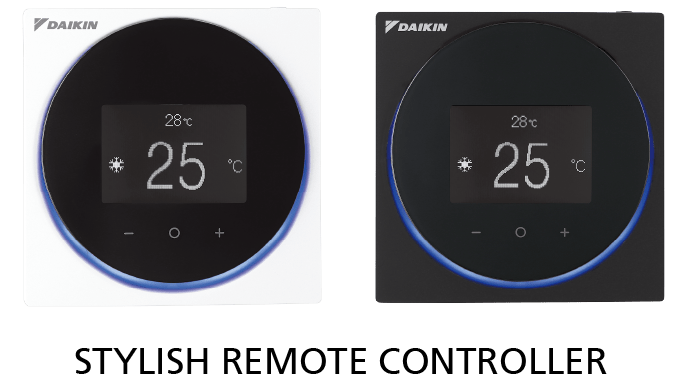

StylishRemote Controller
BRC1H63W(K)
Available in two attractive colours, the new remote controller adds style and sophistication to any indoor space.
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
Promotion Movie
Stylish Remote Controller (BRC1H63W(K))
- Sleek stylish design
- DAIKIN APP for Installer simplifies the advanced settings such as field settings
- Useful administration / Shorter and easier installation

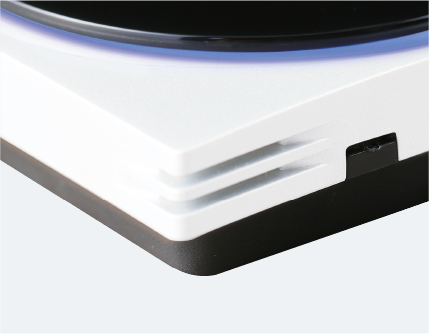

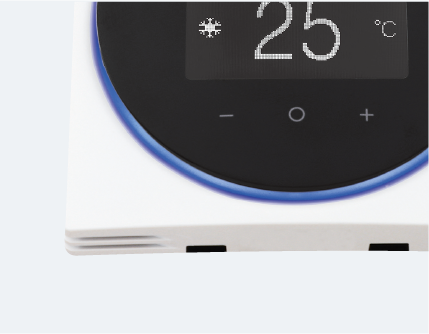

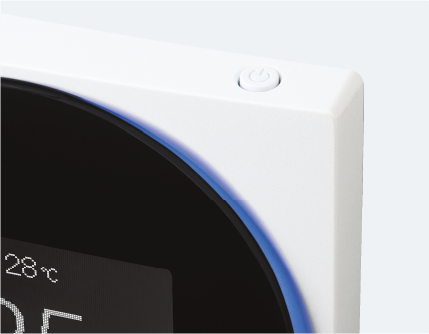

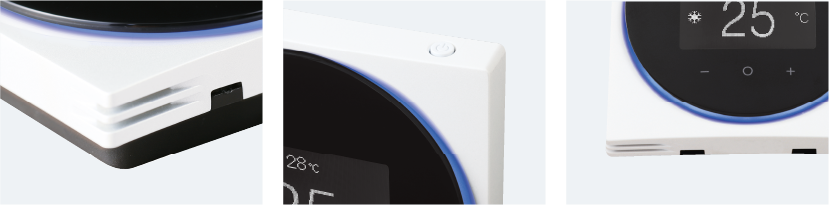

Sleek Stylish Design
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

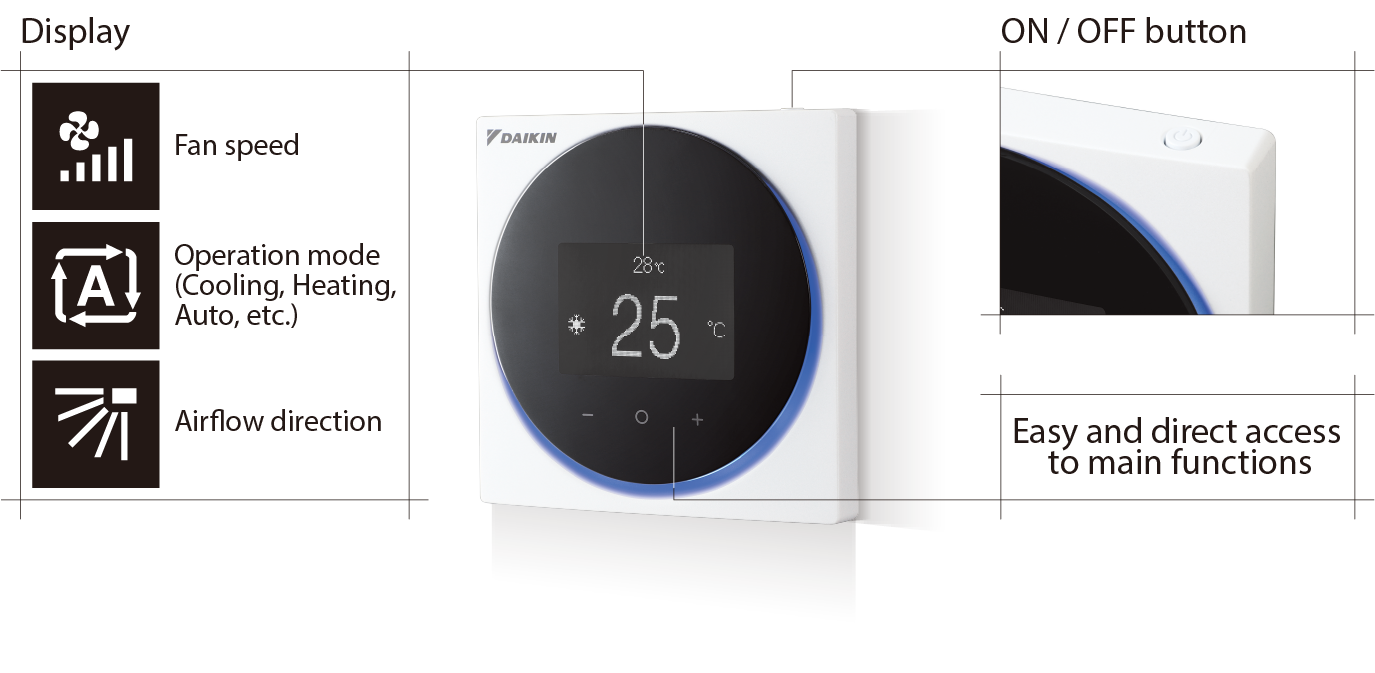

User-friendly Interface
The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

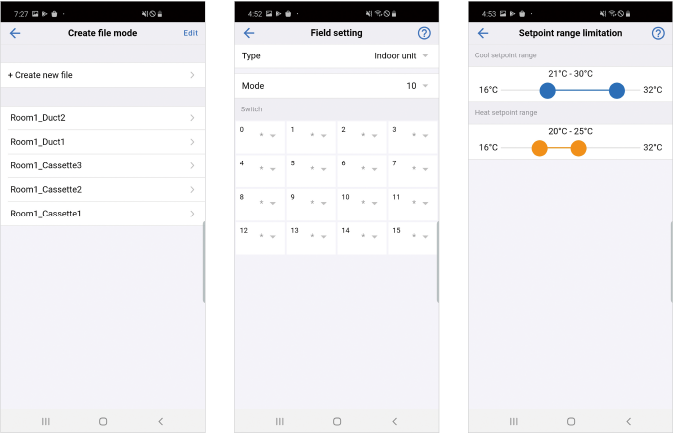

DAIKIN APP for Installer
Simplifies the advanced settings such as field settings and set point range.
- Visual interface simplifies advanced settings such as energy saving activation, setting restrictions, etc.
- Easy and quick commissioning, saves time and cost for installers.
- Featuring Bluetooth low energy technology.
Useful Administration and Shorter and Easier Installation
The smartphone application connected to this controller provides 2 modes,
Owner / Administrator mode and Installer mode (no end-user mode).
Owner / Administrator mode provides useful setting of
- Setback setting
- Setpoint range setting
- Function lock
- Weekly schedule timer NEW
- Simple display for hotel guests NEWetc.
Installer mode makes installation faster and easier with
- Set up multiple settings at once
- Save and reuse settings
- OTA (Over The Air):Remote update function NEWetc.

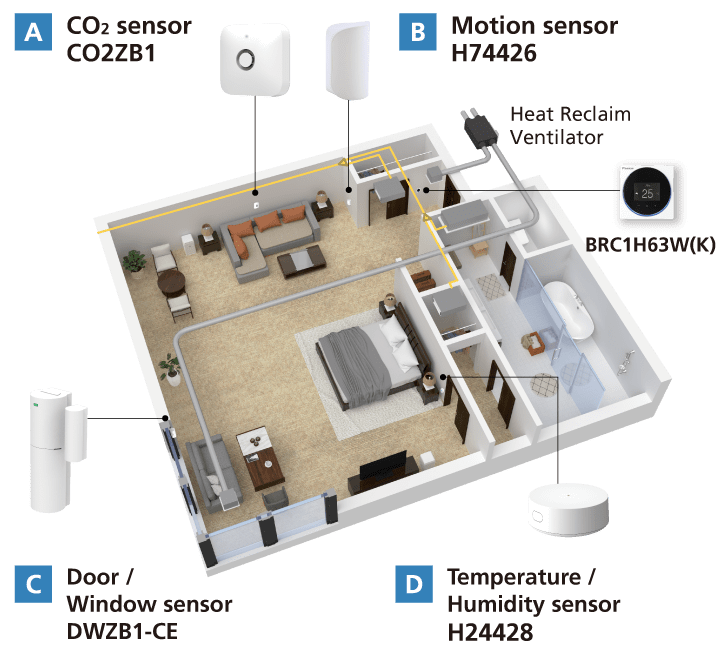

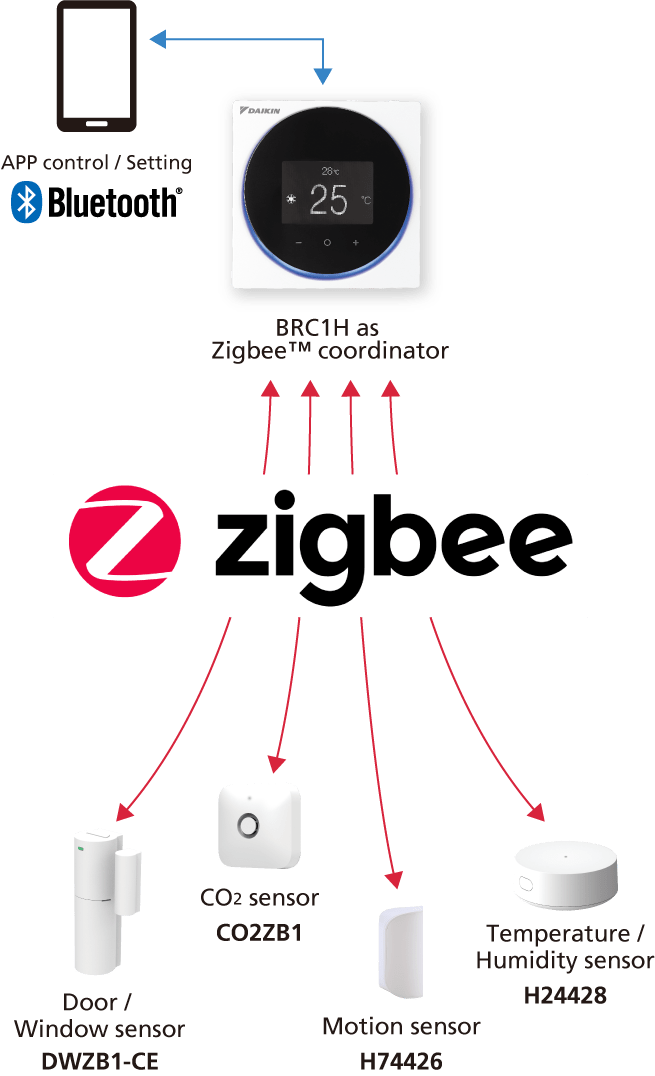

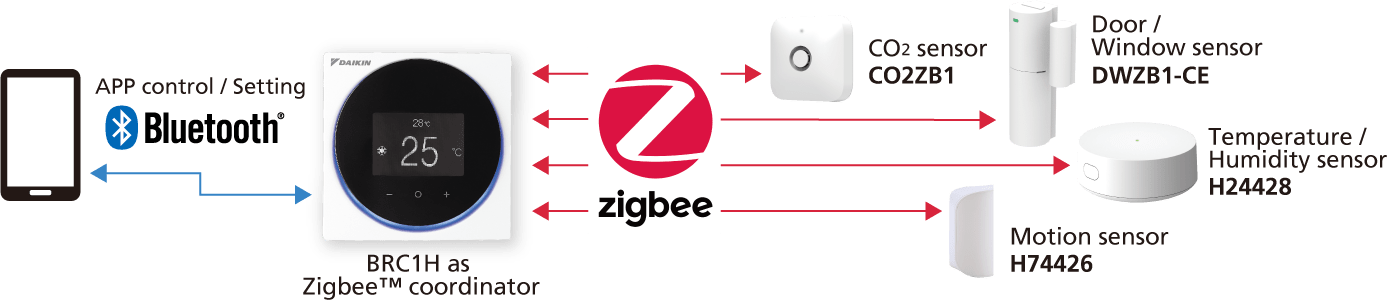

Zigbee™ sensor interlocking function NEW

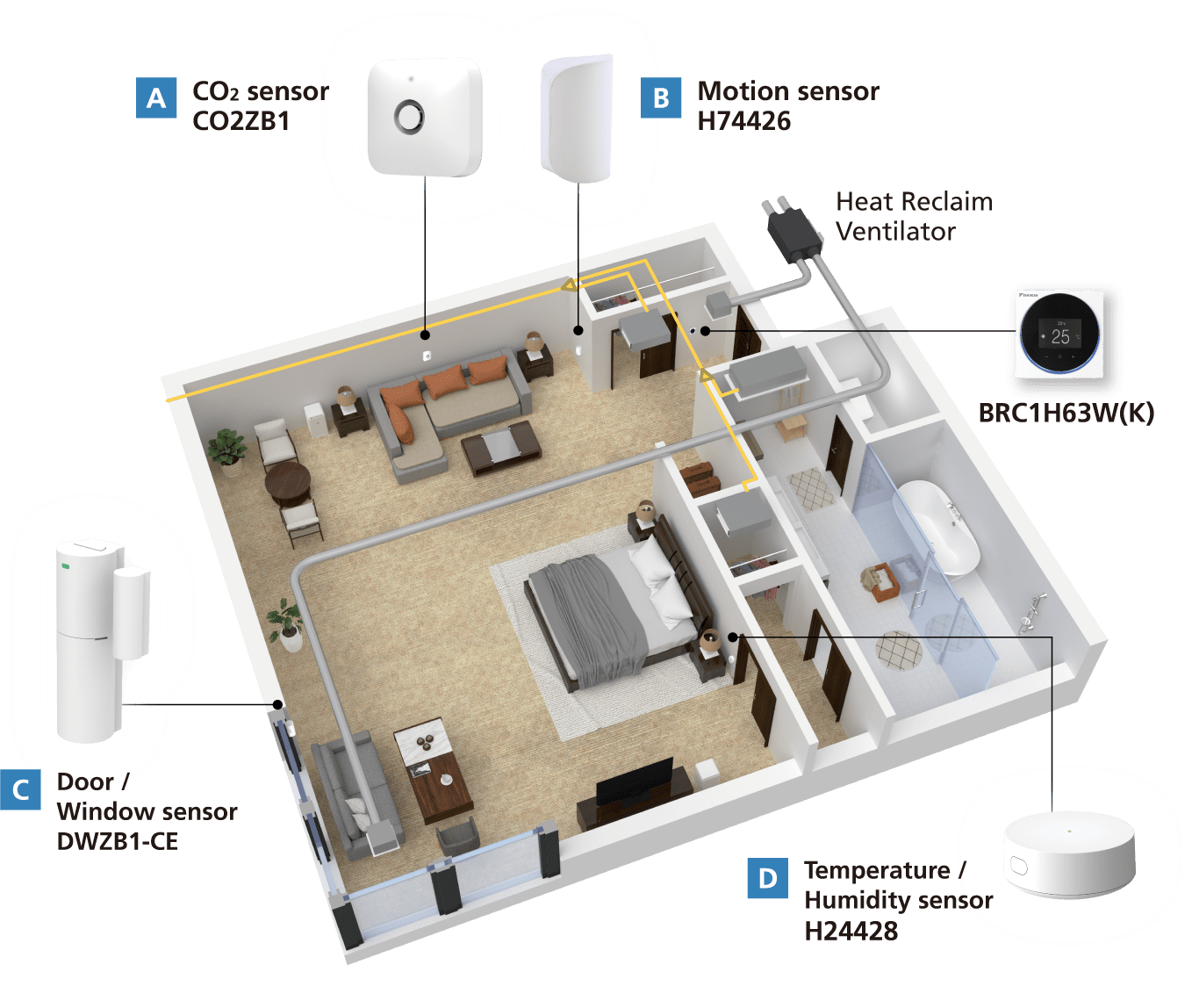

Four kinds of sensors (Temperature/Humidity*, Door/Window, CO2, Motion) and a remote controller are connected by Zigbee™ communication which displays sensor value and uses it to control equipment.
*Humidity sensor is for display only.
CO2 sensor CO2ZB1
- Display
- Change ventilation rate or airflow rate
The upper and lower limits are set, and ventilation rate (or airflow rate) is instructed whenever either the upper or lower limit is exceeded for a specified time. Ventilation rate/airflow rate can be instructed even in the middle of the upper and lower limits.
Motion sensor H74426
- Air conditioner operation ON/OFF
Operation ON/OFF is instructed according to the detection (or non-detection) of human movement for a specified time.
Door / Window sensor DWZB1-CE
- Air conditioner operation ON/OFF
Operation ON/OFF is instructed according to Open/Closed status of windows for a specified time.
Temperature / Humidity sensor H24428
- Display
- Air conditioner operation ON/OFF (Temp.sensor only)
The upper and lower limits are set, and operation ON/OFF is instructed whenever either the upper or lower limit is exceeded for a specified time.
Zigbee™ is developed by the Connectivity Standards Alliance™.
This brand, related logos, and marks are trademarks of the Alliance, all rights reserved.

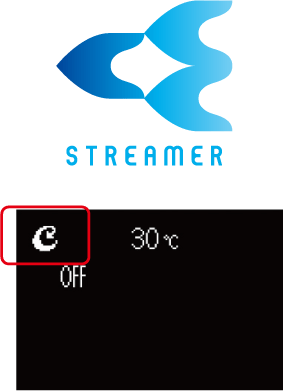

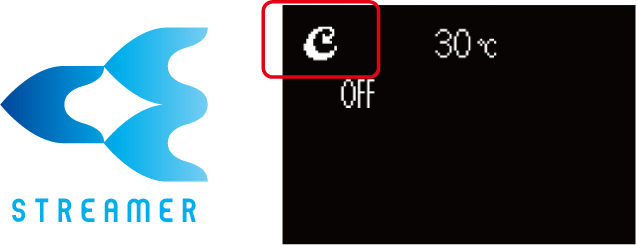

Streamer function
Streamer ON/OFF setting and status icon are available.
- Streamer function (Mold proof setting) ON/OFF can be set by field setting with the remote controller.
- When a signal is received from the indoor unit that the Streamer function is ON, the Streamer icon is displayed on the Home screen.

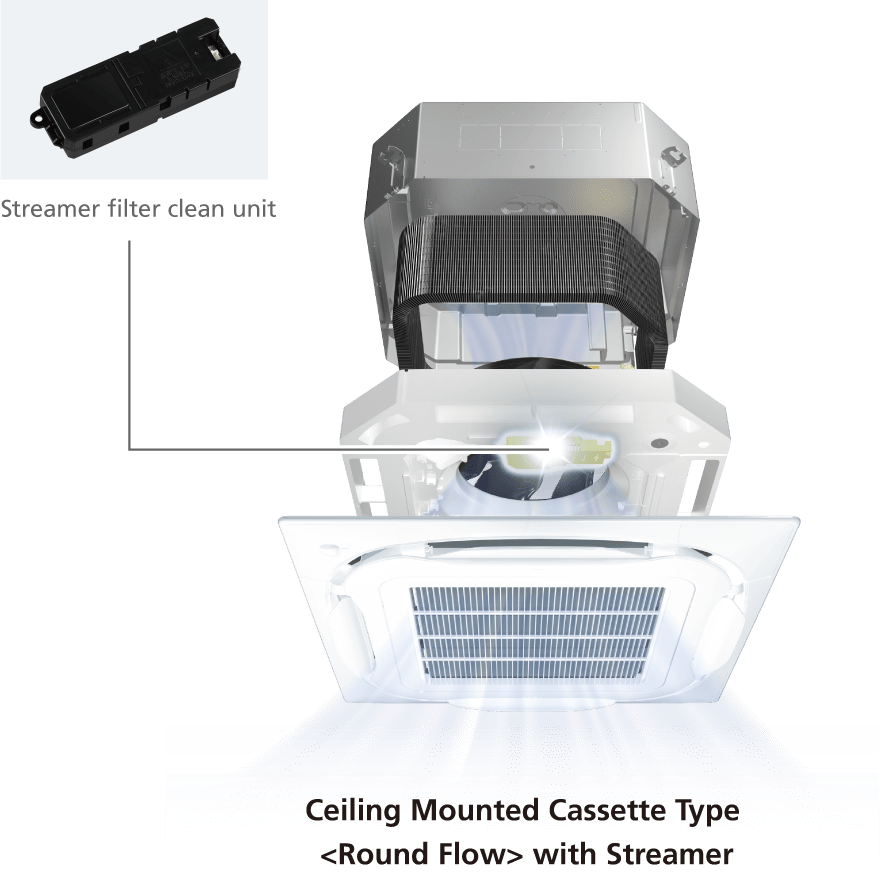

Streamer filter clean function
- Streamer filter clean unit irradiates Streamer when the fan and air conditioning operation are stopped.
Streamer fumigates the cabin and sterilizes the filter.
- The Streamer filter clean unit is an optional accessory for the models below.

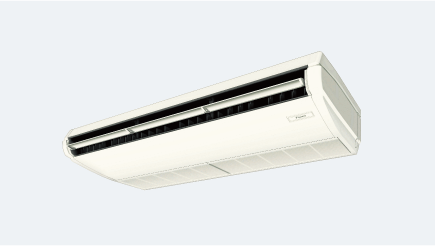

Ceiling Suspended Type
Compact Multi Flow

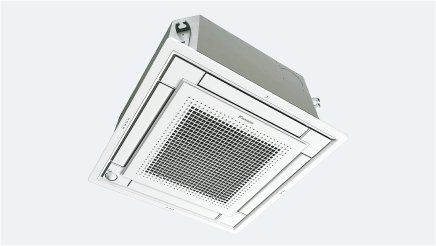

Ceiling Mounted Cassette Type

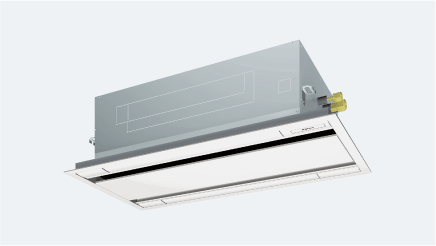

Double Flow Cassette Type
Double Flow Cassette Type

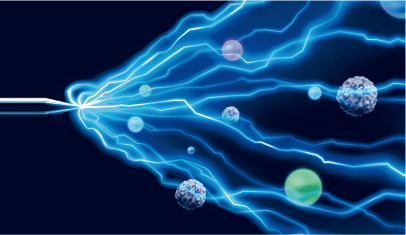

Mechanism of decomposition by Streamer
Streamer emits high-speed electrons.
The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of decomposing elements with decomposition power.
The decomposing elements provide decomposition power.
Operation / Installation Handbooks and Manuals for BRC1H63W(K)
Manuals (Provided on website)
- Operation Manual / English (9.8MB)
- Operation Manual / Spanish (9.8MB)
- Operation Manual / Portuguese (9.8MB)
- Operation Manual / Taiwanese (9.8MB)
- Installation Manual / English (10.1MB)
- Installation Manual / Spanish (10.1MB)
- Installation Manual / Portuguese (10.1MB)
- Installation Manual / Taiwanese (10.3MB)
Operation / Installation Handbooks and Manuals for BRC1H62W(K)
Handbooks (Provided with remote controller)
Manuals (Provided on website)
DAIKIN APP support manual for Administrator for
BRC1H series
