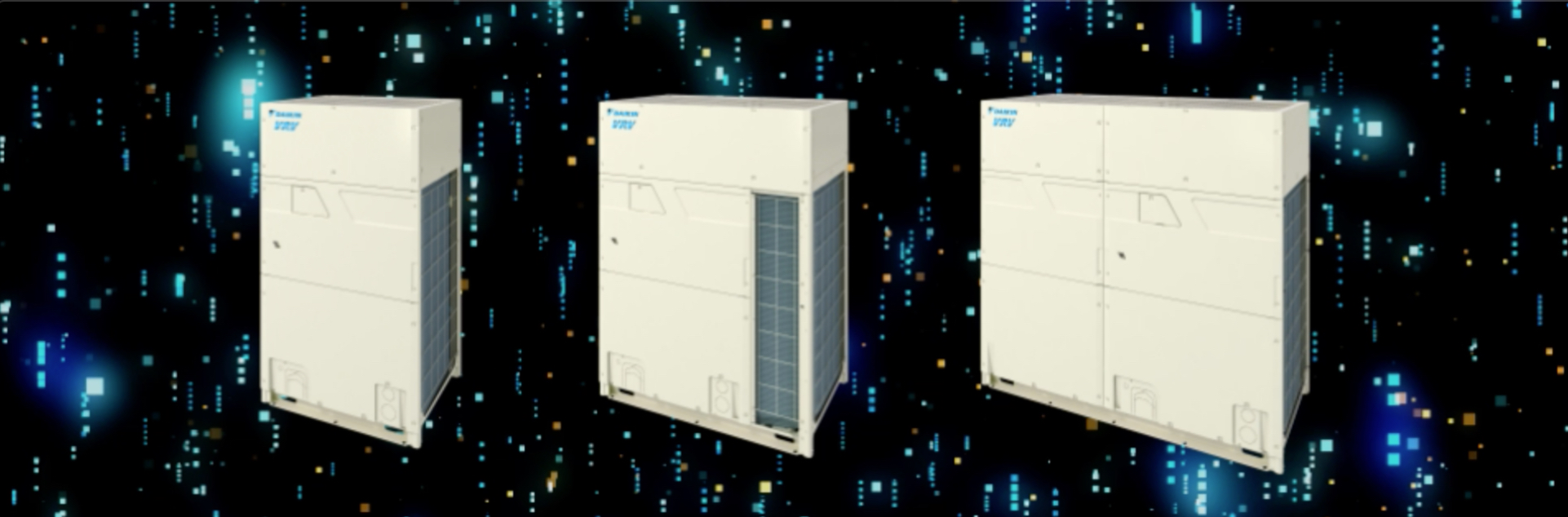

This is the first full VRV model change in seven years.
Equipped with various new functions, the new model shows a significant improvement in total performance.
User Benefit
VRV R series offers a wide variety of new
functions that benefit everyone involved.
-
OWNERS
-
CONSULTANTS
-
INSTALLERS
-
BUILDING
MANAGEMENT
-
For OWNERS
-
For CONSULTANTS
-
For INSTALLERS
-
For BUILDING
MANAGEMENT
Energy Savings
Further energy savings have been achieved through the evolution of software and hardware technologies.
- For OWNERS
-

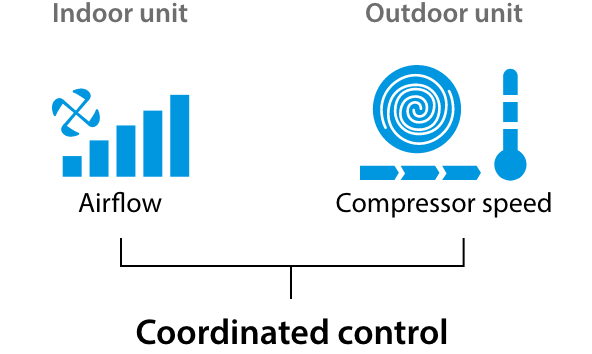

Software technology VRT Smart Control
VRT Smart Control increases the efficiency during actual operation by controlling the air volume of the indoor unit and the refrigerant temperature of the compressor according to the indoor heat load.
Learn More -

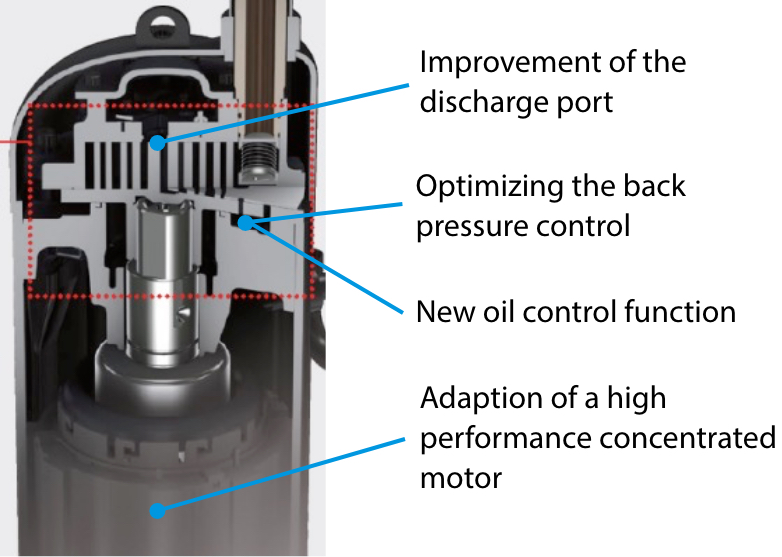

Hardware technologyHigh Efficiency Compressor
New technologies increase seasonal efficiency and
enable a compact design
Design Flexibility
Long piping length enhances design flexibility, enabling support for large buildings.
- For CONSULTANTS
Long refrigerant piping
- Max. height difference between outdoor units and indoor units.
- Max. equivalent piping length 190 m*
- Max. length between first indoor branch and farthest indoor unit 90 m*
- Max. total piping length 1000 m
*Increased refrigerant piping size, etc. is required.
-
Height difference and equivalent length can be extended simultaneously
Learn More -
Support for REFNET header downstream branching
Learn More

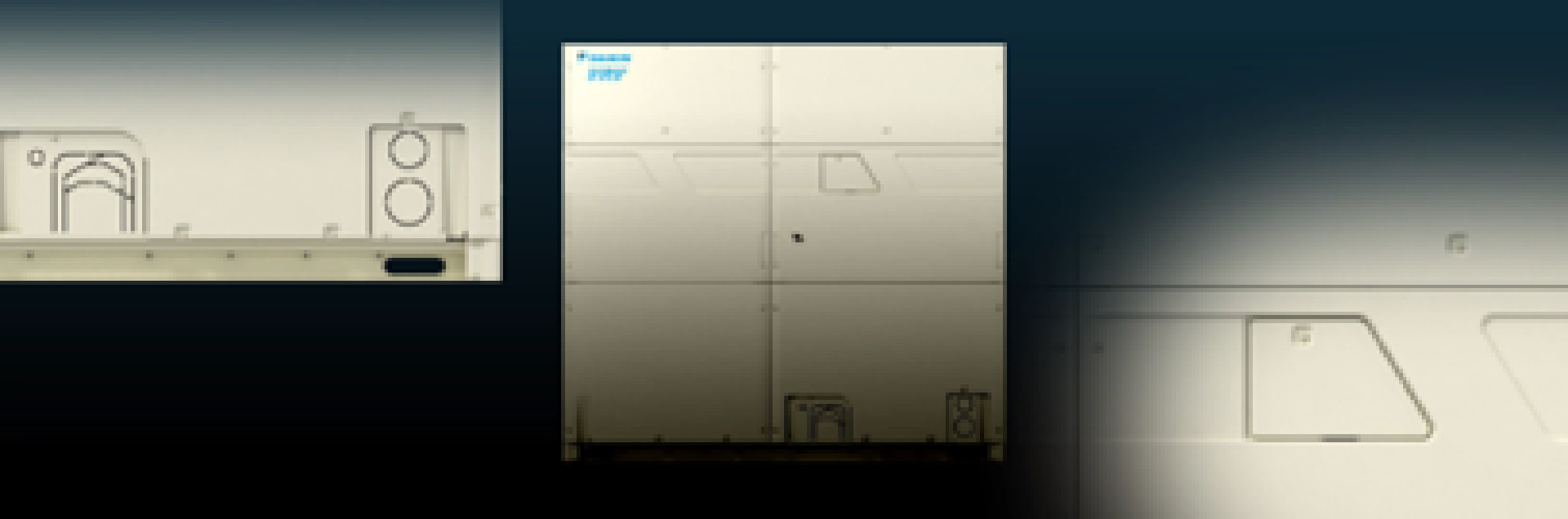

Easy Installation
New structure improves installability.
- For INSTALLERS
-
Drainless Multi BS unit
Drainless function enables a drastic reduction of on-site work since no drain piping is required.
Learn More -

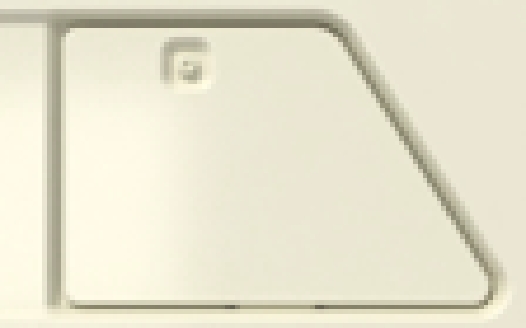

Electrical component service window
Main PCB 7-segment LED and setting buttons can be accessed without removing the front panel. Workability has been highly improved for servicing and field settings.
-
Slimmer main piping
Learn More -
Improved refrigerant piping workability
Learn More

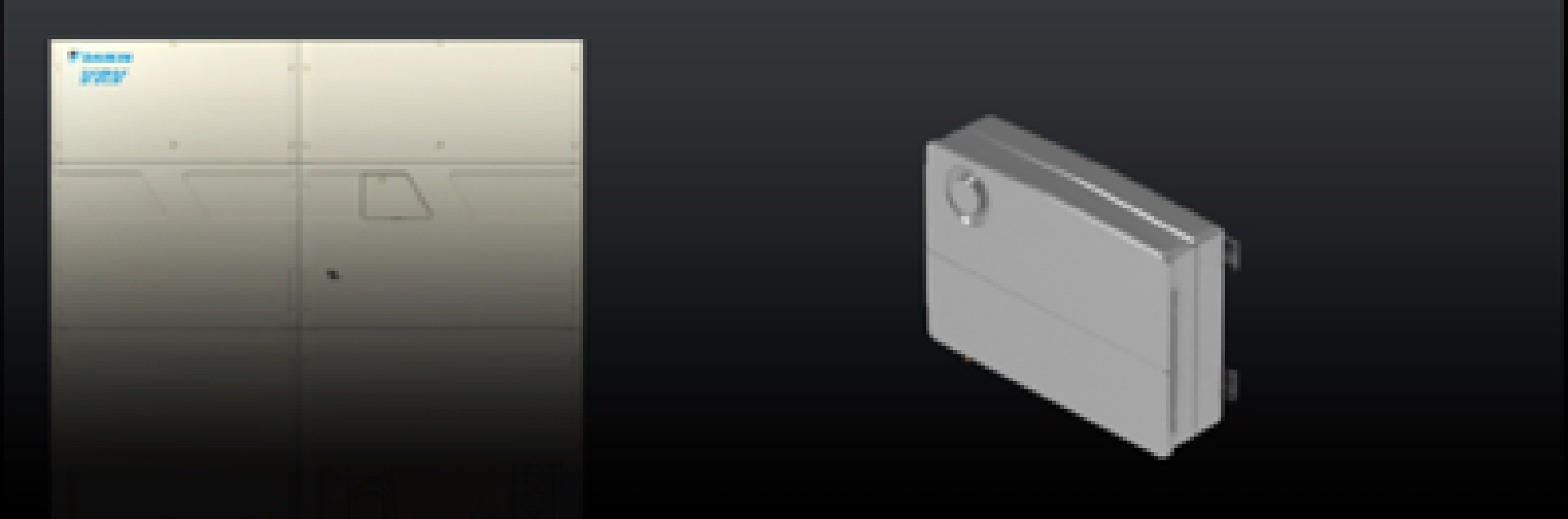

Reliability
Designed to withstand hard environments.
- For OWNERS
- For BUILDING
MANAGEMENT

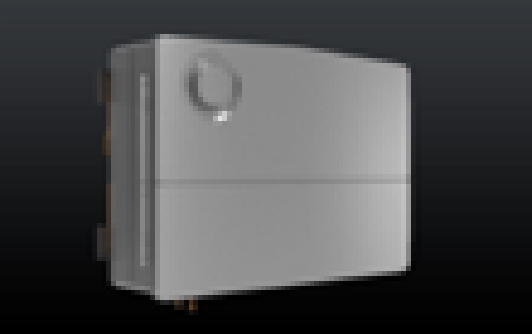

IP55-compliant sealed electrical component box
The ingress of debris (e.g., lizards, bugs, sand, water, and snow), a cause of failure, is prevented.
Learn More

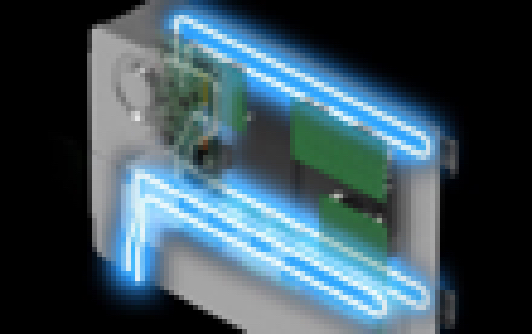

Refrigerant cooling circuit enables operation in high outdoor temperatures
Three refrigerant cooling circuits enable stable operation even in high outdoor temperatures by suppressing a temperature rise for the PCB mounted in the sealed electrical component box.
-
IP55
Learn More
Comfort
Continuous air conditioning.
- For OWNERS
- For BUILDING
MANAGEMENT
-

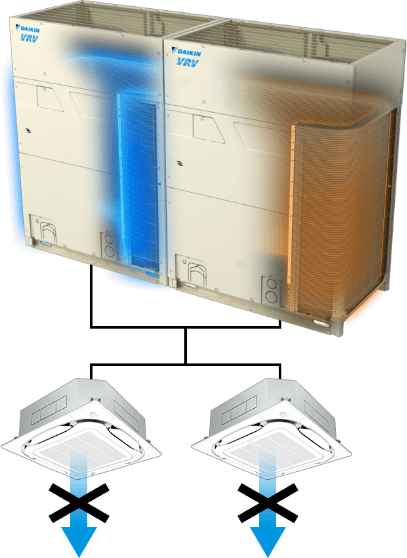

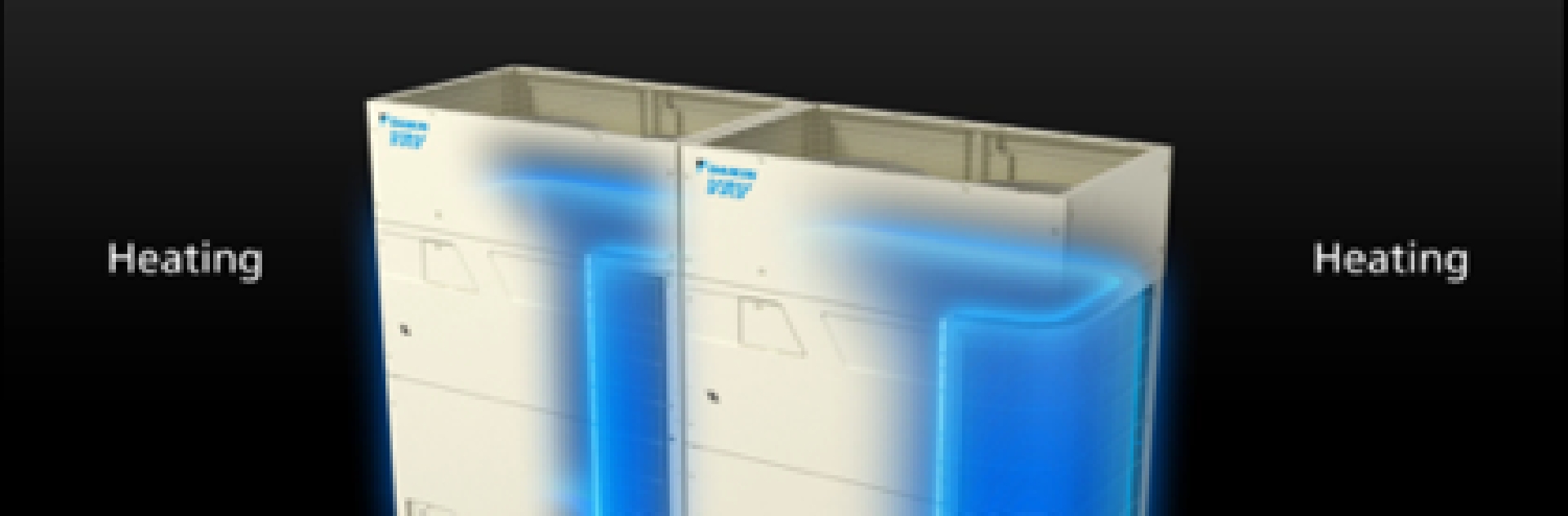

Outdoor unit multi-defrost function
Minimises the cooling of indoor air.
Learn More -
Double backup operation functions

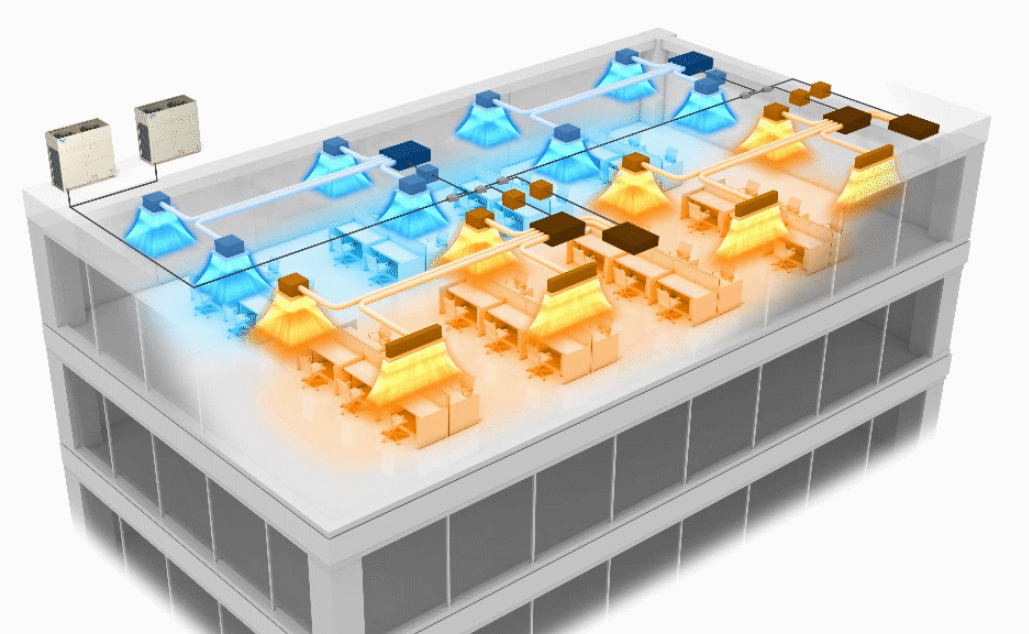

Heat Recovery
VRV R series enables flexibility through simultaneous cooling and heating operation with a single VRV system.
Improves energy efficiency by recycling waste heat.
- The (cold) waste heat from heating is used for the cooling operation.
- The waste heat from cooling is used to generate heat that is needed for heating operation while conserving electricity.
-
Application reference
Learn More
For further information, consult your regional Daikin.
-
