VRV Multi-Split Type Air Conditioners

The Daikin VRV system is a multi-split type air conditioner for commercial buildings that uses variable refrigerant flow control developed by Daikin to provide customers with the ability to maintain individual zone control in each room and floor of a building.

Select your country/region for detailed product information.

Daikin Advantage

Energy-Saving Operation

Precise individual control and inverter technology minimize energy consumption to deliver optimum energy savings.

Individual Control

VRV systems enable individual climate control settings for each zone to provide the utmost in comfort to commercial building settings.

Adaptable Design

Modular design of outdoor units and wide selection of indoor units ensure system designs that are ideally suited to the environments where they are installed.

Flexible Layout

In addition to a maximum connection of 64 indoor units to a single system, large allowances for piping length and level difference provide a flexible layout.

About VRV

When Daikin launched the VRV air conditioning system in 1982, it introduced the world’s first use of variable refrigerant flow control. This technology circulates only the minimum amount of refrigerant needed at any one time and enables individual climate control of air conditioning zones. The name VRV * derives from this technology that we call “variable refrigerant volume.”

*
VRV is a trademark of Daikin Industries, Ltd.

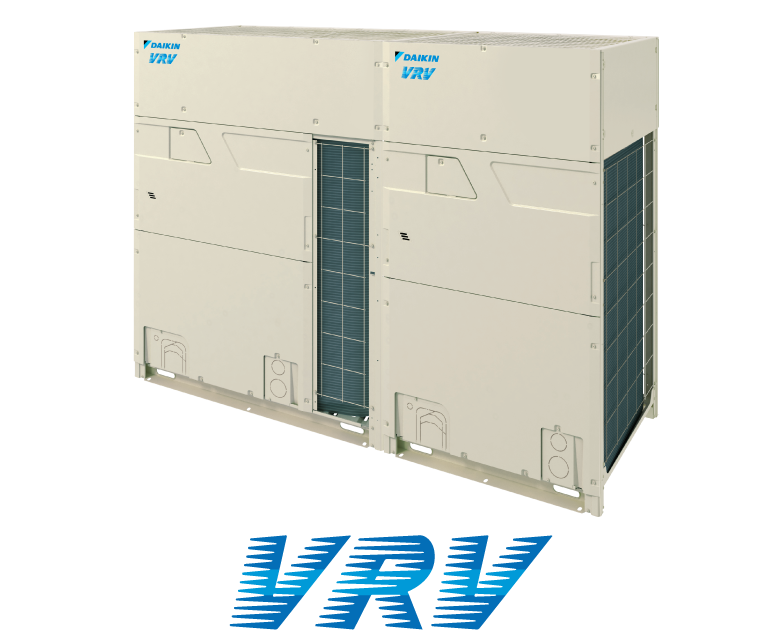

VRV System Solution

Next Generation VRV system for buildings of various sizes

Energy Savings

Energy savings during actual operation have been further improved by advancement in the VRT Smart Control and a new compressor.

Design Flexibility

Increased flexibility of refrigerant piping, such as extended maximum height differences between indoor and outdoor units, enables support for a variety of buildings.

New Reinforced Design

The new large-capacity casing, up to 24 HP, is equipped with unique functions.

For Large-Sized Buildings

Energy Savings

By uniting advanced software and hardware technologies for greater energy savings during actual operation and combining the technologies of VRV, VRT and VAV, we have attained both energy savings and comfortable air conditioning.

Automatic Refrigerant Charge Function

The automatic refrigerant charge function* automates the charging of the proper refrigerant amount and the closing of shut-off valves by simply pressing a switch after pre-charging. This function contributes to optimised operation efficiency, higher quality and easier installation.

High Reliability

The control functions of inverter technology have been integrated on printed circuit boards. As well as improving reliability, this has reduced the number of parts and enabled downsizing.

Product Lineup

VRV
H Series

Heat Pump

The VRV H series unites a variety of advanced technologies in providing high efficiency and comfort to cooling and heating.

VRV
R Series

Heat Recovery

The VRV R series enables simultaneous operation of cooling and heating within a single refrigerant circuit. By utilising advanced technologies, VRV R series achieves further valuable functions.

VRV
X / A Series

Cooling Only

Improving efficiency during low load operation, VRV X and A series ensure energy savings and comfortable air conditioning.


VRV S
High Efficiency Series

Heat Pump / Cooling Only

The VRV S High Efficiency Series achieves high energy efficiency with a variety of function for comfort and high performance. It is ideal for environments where space is limited thank to the low height casing and long piping length.

VRV IV

Heat Pump / Cooling Only

This is the standard model for heating and cooling/cooling only.
Daikin responds to various needs including combinations featuring a small installation footprint and a high COP.

For High Outdoor Temperature Use

This outdoor unit is especially designed for the Middle East and other regions with high ambient temperatures.
Daikin advanced technologies, including long piping and high external static pressure, meet the diverse needs of customers.

For Low Outdoor Temperature Use

High efficiency heating is provided for ambient temperatures as low as -25℃. The addition of 2-stage compression technology has significantly improved heating performance.


For Replacement Use

Replacement of outdoor units is possible using existing refrigerant piping to make renovation of air conditioning systems quick and trouble-free. Conversion from a R22 refrigerant system to a R410A system is possible.

For residential and commercial use

This slim and compact outdoor units efficiently utilize space and meet the needs of homes, small offices and shops with air conditioning capacities up to 24kW.

Water Cooled Unit

This outside unit utilizes water as a heat source. Temperatures of the heat source water can range from 10℃ to 45℃, and heating performance is not affected by ambient temperature.
The compact size saves space in mechanical rooms.

Daikin offers a wide selection of 18 indoor unit types for customized air conditioning solutions that uniquely meet the diverse needs of Daikin customers.

Learn More

Ceiling Mounted Cassette (Round Flow Cassette with Sensing and Streamer) Type

The presence of people and floor temperature can be detected for added comfort and energy savings.

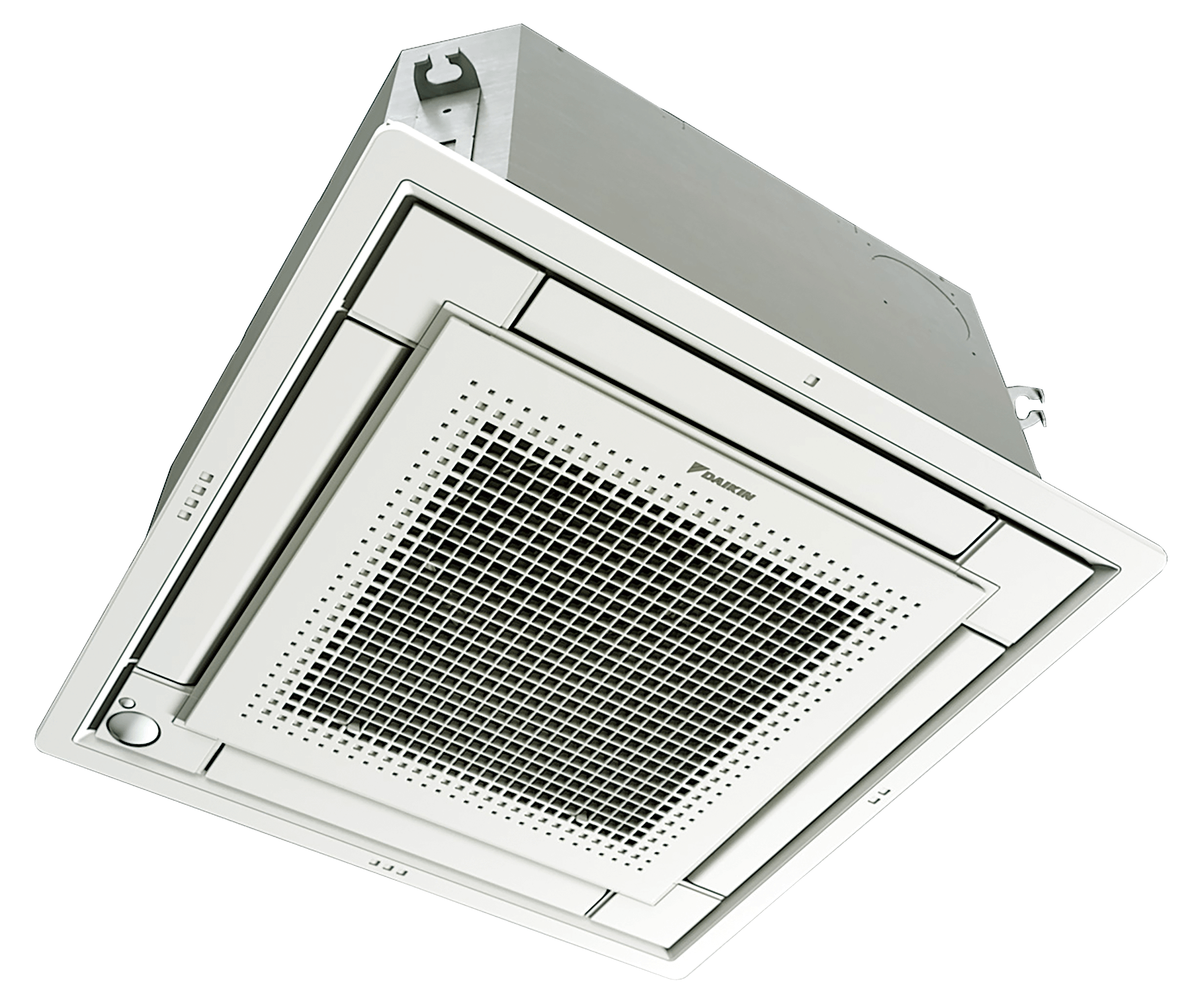

Ceiling Mounted Cassette (Round Flow Cassette with Streamer) Type

360° airflow improves temperature distribution and offers a comfortable interior environment.

Ceiling Mounted Cassette (Compact Multi Flow) Type

The compact design provides quiet operation and comfort.


4-Way Flow Ceiling Suspended Type

This slim, stylish design achieves optimum air distribution and installs without need of a ceiling cavity.

Ceiling Mounted Cassette (Double Flow) Type

The stylish unit with sophisticated panel design blends easily with any interior.

Ceiling Mounted Cassette (Single Flow) Type

The slim design enables flexible installation.


Ceiling Concealed Duct Type (3D Airflow with Sensing)

With its stylish and compact design, this unit features 3D airflow with sensing function to provide comfort and energy savings.

Ceiling Concealed Duct Type (Bedroom Duct)

The compact design is suitable for narrow entrance ways at hotels and condominiums.

Slim Ceiling Concealed Duct Type (Standard Series)

This model features quiet operation, static pressure switching and slim design with a height of 200mm.


Slim Ceiling Concealed Duct Type (Compact Series)

The slim and compact design with a height of 200mm and a depth of only 450mm enables easy and flexible installation.

Middle Static Pressure Ceiling Concealed Duct Type

Middle external static pressure and slim design allow flexible installations.

Middle-High Static Pressure Ceiling Concealed Duct Type

Middle and high external static pressure allows flexible installation.


Ceiling Suspended Type

The slim design features quiet operation and wide airflow.

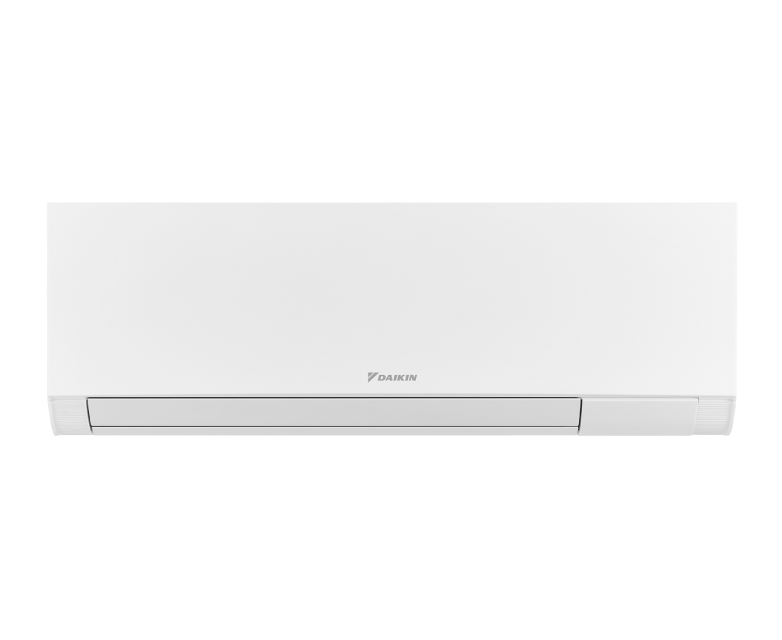

Wall Mounted Type

The stylish flat panel design harmonizes with any interior decor.

Floor Standing Type

This model is particularly suitable for perimeter zone air conditioning


Concealed Floor Standing Type

This model is designed to be enclosed and concealed in perimeter skirting-wall.

Floor Standing Duct Type

Large air volume type for large spaces. Flexible interior design for each tenant.

Clean Room Air Conditioner

This model is suitable for hospitals and other clean spaces.

Select your country/region for detailed product information.

Technology

Greater Energy Savings During Low-load Operation

Software Technology

VRT Smart Control (Fully Automatic Energy-saving Refrigerant Control)

*
This is a VRV X and A series movie, but the functions that are explained in it are also available in the VRV H series.
Learn More

Hardware Technology

New Scroll Compressor Back Pressure Control Mechanism

*
This is a VRV X and A series movie, but the functions that are explained in it are also available in the VRV H series.
Learn More

Automatic Refrigerant Charge Function

*
This is a VRV X and A series movie, but the functions that are explained in it are also available in the VRV H series.
Learn More

Wired Remote Controller

Stylish Remote Controller

  • Sleek stylish design
  • DAIKIN APP for Installer simplifies the advanced settings such as field settings
  • Useful administration / Shorter and Easier installation

Navigation Remote Controller

  • Operation is easy and smooth, just follow the indication on the remote controller
  • Weekly schedule can be set 5 actions per day for each day of the week
  • Circulation airflow, a function for the latest cassette type can be set

Simplified Remote Controller

  • Simple operation by using only six buttons, and users have direct access to basic functions
  • Intuitive design by using pictograms enables user-friendly interface
  • Overseas guests at hotels understand functions without having to know a foreign languages

VRV Control System

VRV Smartphone Control System

A smartphone or tablet PC can be used to monitor and control air-conditioning from anywhere. Our solutions are not only for commercial buildings, but also for houses, stores, hotels, hospitals, schools, high-rise buildings, and compound buildings.

Movie for office solutions

Movie for hotel solutions

Case Study

Case Study

Visit the Daikin Global Case Studies page for detailed examples of installations

Learn More

Additional Information

Daikin and Refrigerants

Daikin and Refrigerants

Daikin is a comprehensive manufacturer that also produces the refrigerant used in its air conditioning equipment.

Daikin's Policy and Comprehensive Actions

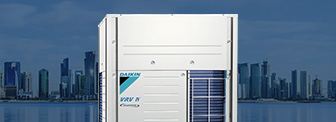

VRV, Opening the New Era

VRV, Opening the New Era

“Daikin’s development of VRV” was the moment a new standard was created; the birth of the next generation of air conditioners.

VRV, Opening the New Era

After Sales Service

After Sales Service

A global support system delivers timely solutions to all needs.
